SINGLE SKIN SHEET & INSULATED PANELS

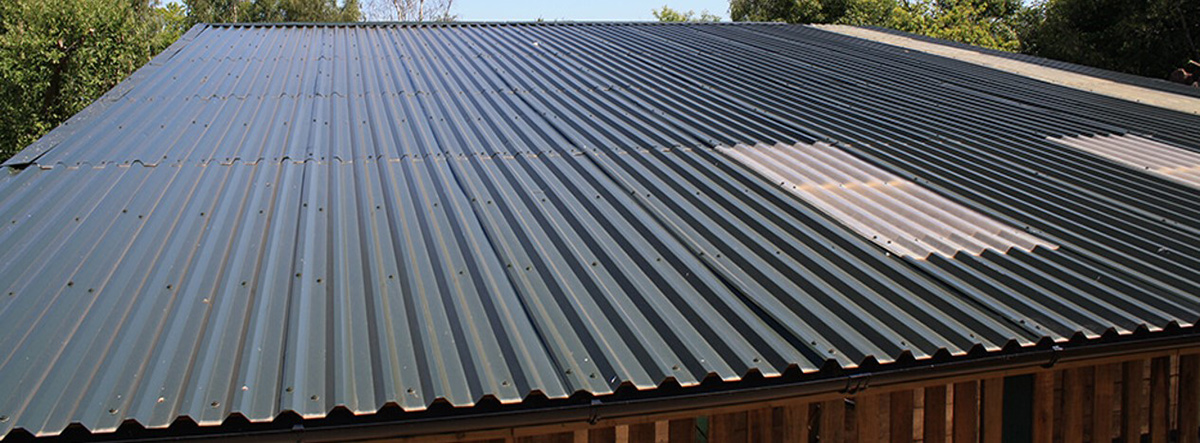

Roof & wall panels
The pre-painted roof and wall panels are of 0.5mm-0.9mm steel or aluminum roll-formed sheet.
The sheet shall have a minimum yield strength 29kn/cm2 and shall conform to ASTM A653.
Zinc coating on steel is achieved by continuous hot-dip galvanization that equals or exceeds ASTM A527 standard.
Exterior surface shall be precision polyester coated type top finish with dry film thickness of 25 (+-5 micron). The reverse side shall be of grey/white colour with 5 micron of dry film thickness.

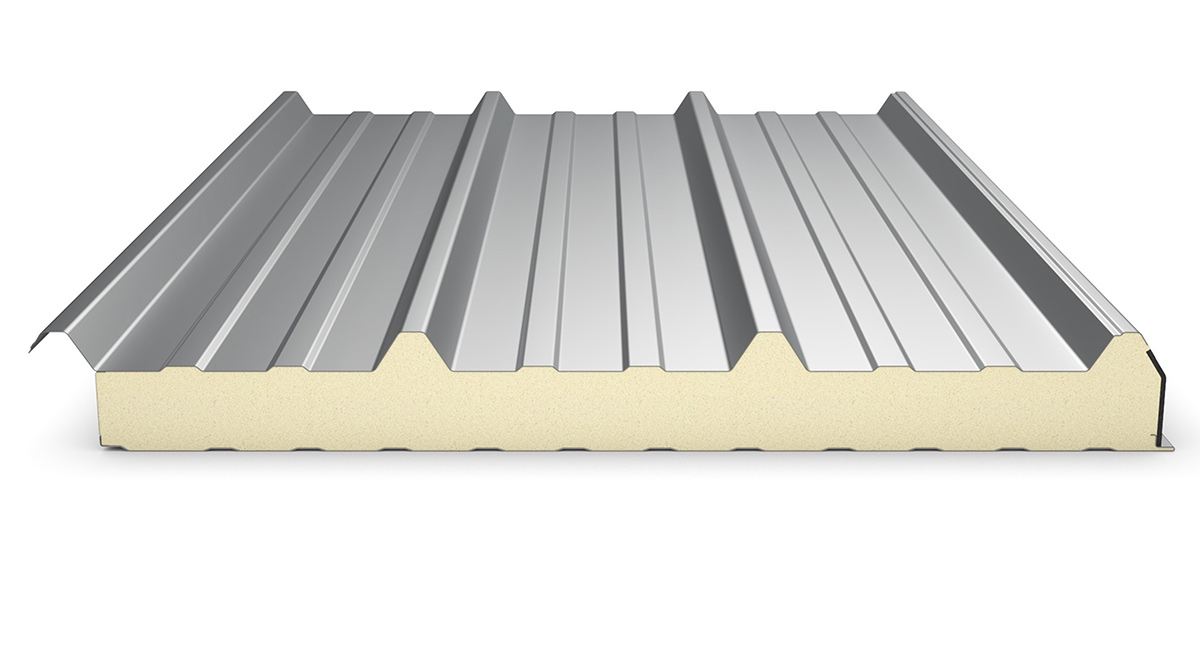

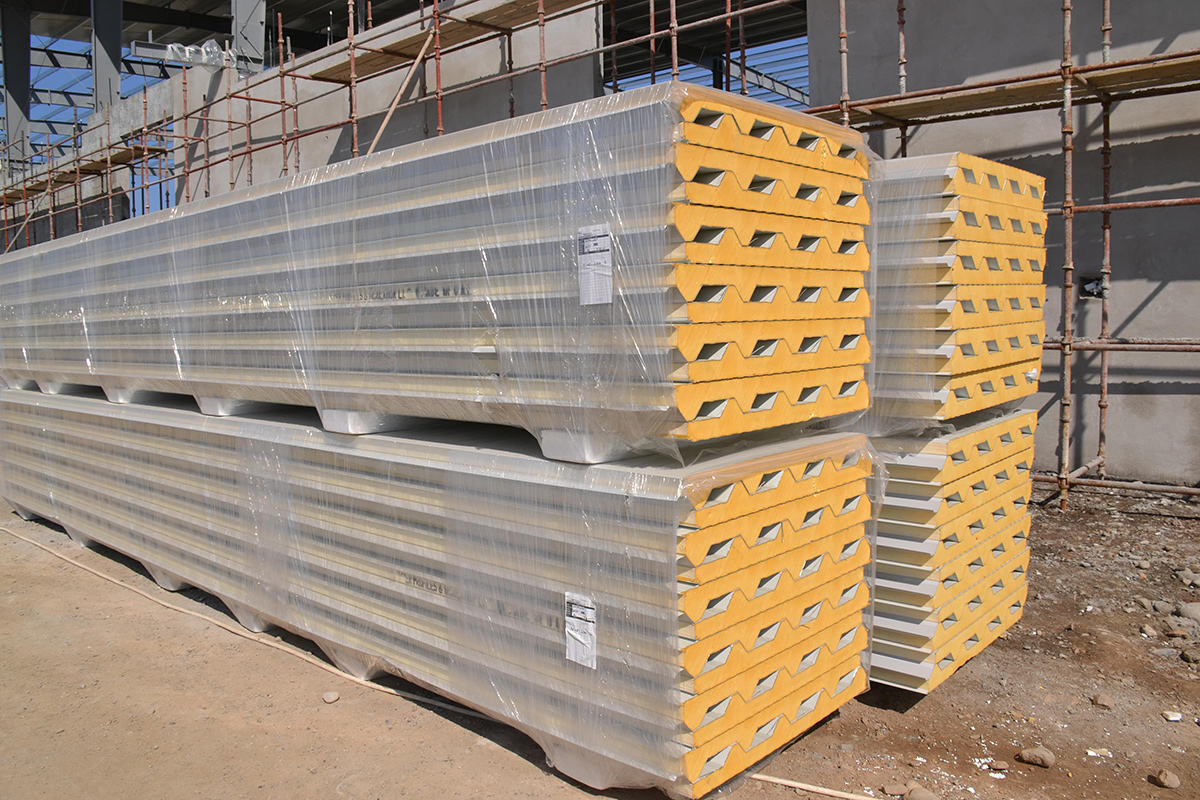

Insulated Panels
Polyurethane or PIR injected composite/insulated panels are available in various thickness and density. The sandwich panels are a composite of metal skin with a polyurethane foam core in between. Roof and wall a factory-bonded with a coverage width of 1000 mm. The panels are available in thicknesses of 50mm, 80 mm, 100mm, 120mm. The surface of the exterior metal skin is coated with polyester or PVDF paint depending on the customer’s requirement. MK can provide sandwich panel in variety of color finishes. For more information, please consult MK representative team.

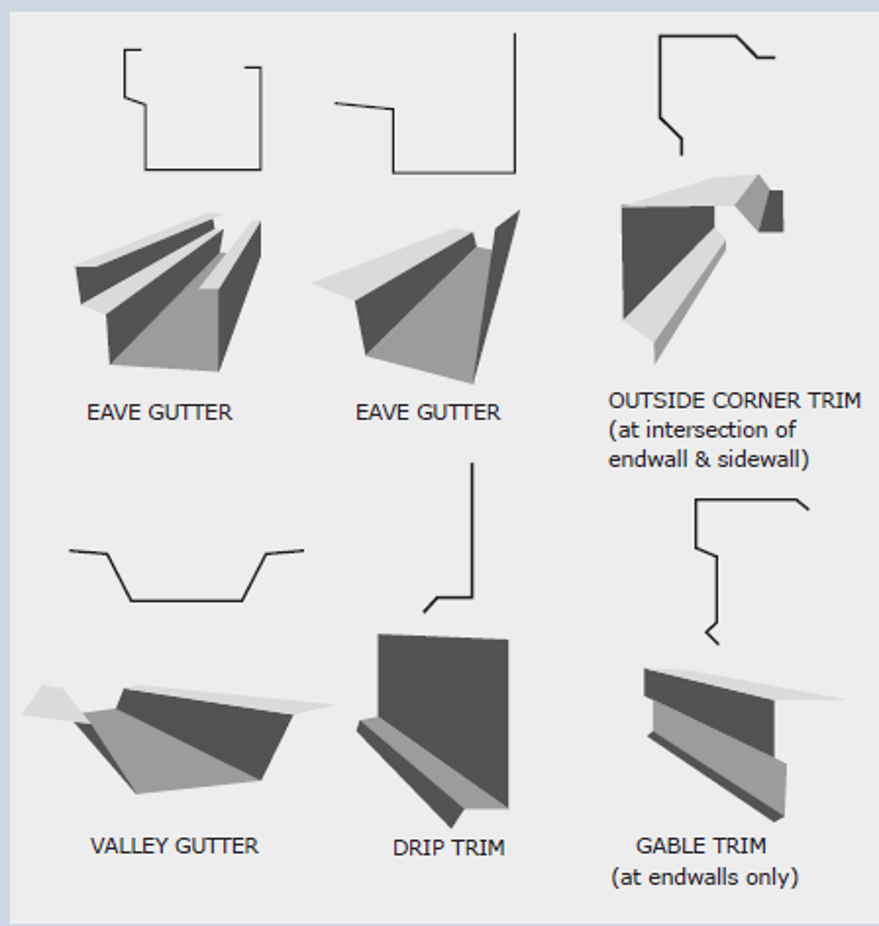

Metal Trims and Flashing
Metal flashing completes the ends and corner of roof sheets to cover the metal sheet intersects or where a roof meets a wall flashing product help improve the looks of a roof and its building as well as protecting the edge of roof and wall.
Standard wall trim:
Are made of 0.5 to 0.9mm aluminum/Aluzinc/GI steel.They are strong less prone to damage and can be supplied in longer length to provide good appearance.
